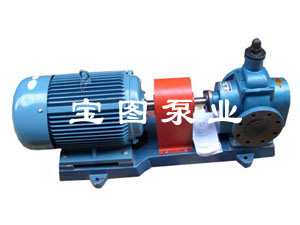

YCB圓弧齒輪泵
YCB圓弧齒輪泵詳細介紹
YCB圓弧齒輪泵主要有齒輪、軸、泵體、泵蓋、軸承套、軸端密封等組成。齒輪采用雙圓弧正弦曲線齒形制造。它與漸開線齒輪相比最突出的優點是齒輪嚙合過程中齒廓面沒有相對滑動，所以齒面無磨損，運轉平穩，無因液現象，噪音低、壽命長、效率高。該泵擺脫了傳統設計的束縛，使得齒輪泵在設計、生產和使用上進入了一個新的領域。YCB圓弧齒輪泵設有安全閥作為超載保護，安全閥全回流壓力為泵額定排出壓力的1.5倍。也可在允許排出壓力范圍內根據實際需要另行調整。但注意本安全閥不能作減壓閥長期工作，需要時可在管路上另行安裝。YCB圓弧齒輪泵軸端密封設計為兩種形式，一種為機械密封，一種是填料密封，可根據具體使用情況和用戶要求確定。
應用范圍：在輸油系統中可用作傳輸，增壓泵;在燃油系統中可用作輸送，加壓，噴射的燃油泵;在液壓傳動系統中可用作提供液壓動力的液壓泵;在一切工業領域中，均可作潤滑油泵用。
YCB圓弧齒輪泵 KCG適用于輸送不含固體顆粒和纖維，無腐蝕性，溫度不高于200℃，粘度為5×10-6～1.5×10-3m2/s(5-1500cSt)的潤滑油或性質類似潤滑油的其它液體，以及用于液壓傳動系統。
|
型號 |
流量
Q |
轉速
n r/min |
排出壓力
p Mpa |
必需汽
蝕余量 r m |
效率
η % |
電動機 |
||
|
m3/h
|
頻率
Hz |
功率KW
|
型號 |
|||||
|
YCB0.6-0.6
|
0.6
|
910
|
0.6
|
5.5
|
32
|
50
|
0.75
|
Y90S-6
|
|
1.0 |
1390 |
50
|
0.75
|
Y80L2-4
|
||||
|
0.7
|
1130
|
60
|
0.75
|
Y90S-6
|
||||
|
1.2 |
1710
|
60
|
0.75
|
Y80L2-4
|
||||
|
YCB0.6-1.6
|
0.6
|
910
|
1.6
|
7.0
|
70
|
50
|
1.1
|
Y90L-6
|
|
1.0
|
1400
|
50
|
1.5
|
Y90L-4
|
||||
|
0.7
|
1130
|
60
|
1.1
|
Y90L-6
|
||||
|
1.2
|
1710
|
60
|
1.1
|
Y90S-4
|
||||
|
YCB1.6-0.6
|
1.6
|
910
|
0.6
|
5.5
|
42
|
50
|
0.75
|
Y90S-6
|
|
2.5
|
1400
|
50
|
1.1
|
Y90S-4
|
||||
|
1.9
|
1130
|
60
|
1.1
|
Y90L-6
|
||||
|
3.0
|
1710
|
60
|
1.5
|
Y90L-4
|
||||
|
YCB1.6-1.6
|
1.6
|
940
|
1.6
|
7.0
|
71
|
50
|
2.2
|
Y112M-6
|
|
2.5
|
1440
|
50
|
4 |
Y112M-4
|
||||
|
1.9
|
1150
|
60 |
2.2
|
Y112M-6 |
||||
|
3.0
|
1750
|
60
|
4
|
Y112M-4 |
||||
|
YCB3.3-0.6
|
3.3
|
940
|
0.6
|
5.0
|
60
|
50
|
1.5
|
Y100L-6
|
|
5.0
|
1420
|
50
|
2.2
|
Y100L1-4
|
||||
|
4.0
|
1150
|
60
|
1.5
|
Y100L-6
|
||||
|
6.0
|
1730
|
60
|
2.2
|
Y100L1-4
|
||||
|
YCB3.3-1.6
|
3.3
|
960
|
1.6
|
7.0
|
72
|
50
|
5.5
|
Y132M2-6
|
|
5.0
|
1440
|
50
|
7.5
|
Y132M-4
|
||||
|
4.0
|
1170
|
60
|
4
|
Y132M1-6
|
||||
|
6.0
|
1750
|
60
|
7.5
|
Y132M-4
|
||||
|
YCB4-0.6
|
4.0
|
940
|
0.6
|
5.0
|
60
|
50
|
1.5
|
Y100L-6
|
|
6.0
|
1420
|
50
|
2.2
|
Y100L1-4
|
||||
|
4.8
|
1150
|
60
|
2.2 |
Y112M-6
|
||||
|
7.2
|
1730
|
60
|
3
|
Y100L2-4 |
||||
|
YCB4-1.6
|
4.0
|
960
|
1.6
|
7.0
|
72
|
50
|
5.5
|
Y132M2-6
|
|
6.0
|
1440
|
50
|
7.5
|
Y132M-4
|
||||
|
4.8
|
1170
|
60
|
5.5
|
Y132M-6 |
||||
|
7.2
|
1750
|
60
|
7.5
|
Y132M-4 |
||||
|
YCB8-0.6
|
8.0
|
960
|
0.6
|
5.0
|
61
|
50
|
3
|
Y132S-6
|
|
12.0
|
1440
|
50
|
5.5
|
Y132S-4
|
||||
|
9.6
|
1170
|
60
|
4
|
Y132M1-6
|
||||
|
14.4
|
1750
|
60
|
5.5
|
Y132S-4
|
||||
|
YCB8-1.6
|
8.0
|
970
|
1.6
|
7.0
|
75
|
50
|
11
|
Y160L-6
|
|
12.0
|
1460
|
50
|
15
|
Y160L-4
|
||||
|
9.6
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
14.4
|
1760
|
60
|
15
|
Y160L-4
|
||||
|
YCB10-0.6
|
10.0
|
960
|
0.6
|
5.0
|
62
|
50
|
4
|
Y132M1-6
|
|
15.0
|
1440
|
50
|
5.5
|
Y132S-4
|
||||
|
12.0
|
1170
|
60
|
5.5
|
Y132M2-6
|
||||
|
18.0
|
1750
|
60
|
7.5
|
Y132M-4
|
||||
|
YCB10-1.6
|
10.0
|
970
|
1.6
|
7.0
|
76
|
50
|
11
|
Y160L-6
|
|
15.0
|
1470
|
50
|
15
|
Y160L-4
|
||||
|
12.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
18.0
|
1770
|
60
|
18.5
|
Y160L-4
|
||||
|
YCB20-0.6
|
20.0
|
970
|
0.6
|
5.0
|
68
|
50
|
7.5
|
Y160M-6
|
|
24.0
|
1170
|
60
|
7.5
|
Y160M-6
|
||||
|
YCB25-0.6
|
25.0
|
970
|
0.6
|
5.5
|
69
|
50
|
11
|
Y160L-6
|
|
30.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
YCB30-0.6
|
30.0
|
970
|
0.6
|
5.5
|
70
|
50
|
11
|
Y160L-6
|
|
36.0
|
1170
|
60
|
11
|
Y160L-6
|
||||
|
YCB40-0.6
|
40.0
|
970
|
0.6
|
5.5
|
72
|
50
|
15
|
Y180L-6
|
|
48.0
|
1180
|
60
|
15
|
Y180L-6
|
||||
|
YCB50-0.6
|
50.0
|
970
|
0.6
|
5.5
|
72
|
50
|
22
|
Y200L2-6
|
|
60.0
|
1180
|
60
|
22
|
Y200L2-6
|
||||
